CedarVent 2-3/8″ – for Cedar Shingles and Shakes

$252.00 From $228.00

CedarVent eliminates the need to drill holes in the rafters to ventilate areas trapped by construction supports. Use it in areas otherwise unventilated and considered problem areas. It is very versatile and can be used on wall surfaces between siding and wall sheathing, allowing air to move between those areas.

CedarVent is an under-plywood, top-of-rafter vent easily installed during the construction of an addition or a new home. The CedarVent provides adequate ventilation in the spaces to either side of the vent placement.

If you are looking for 1-½″ wide CedarVents, click here

It is a required vent product when your soffit to ridge air flow is blocked by a skylight or dormer. CedarVent easily allows air movement in those trapped areas.

DCI Products is the manufacturer of CedarVent. You can find more information about CedarVent here: https://dciproducts.com/cedarvent/

It eliminates the need to drill holes in the rafters to ventilate areas trapped by construction supports. Use it in areas otherwise unventilated and considered problem areas. It is very versatile and can be used on wall surfaces between siding and wall sheathing, allowing air to move between those areas.

Please use the Size option below to select the thickness you require.



Description

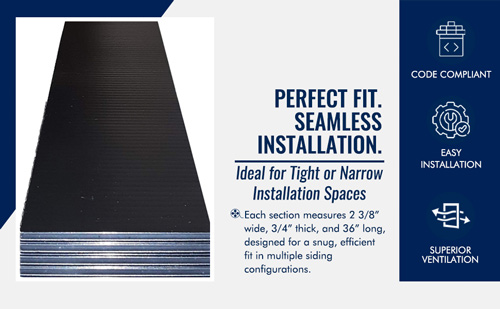

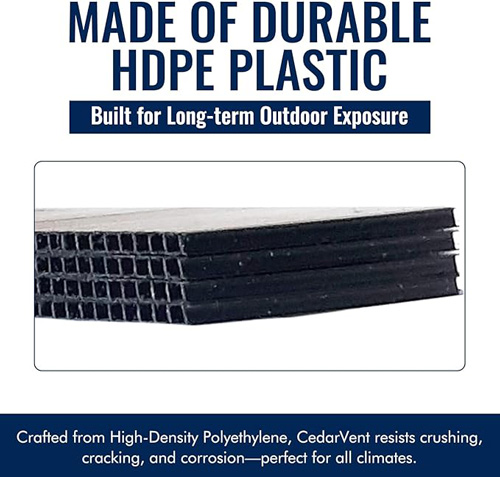

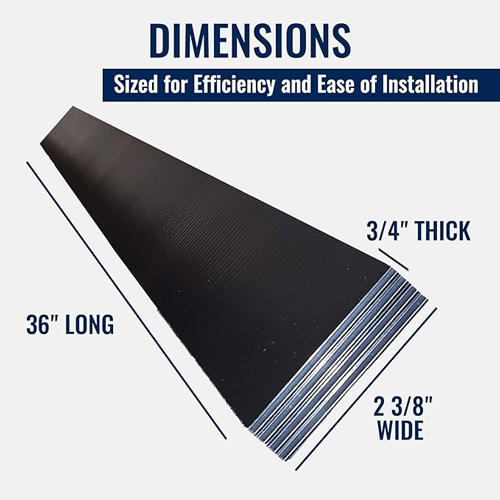

CedarVent is made of HDPE polyethylene plastic that is 2-3/8” wide X 3/8” thick X 36” long for maximum on the job installation, durability, and flexibility. CedarVent is available in many sizes as well as custom sizes in width, depth, and length with or without the insect/weather guard (Plus). The most popular size purchased is listed above. 3 Ply is 1/2″ thick, 2 ply is 3/8” thick, 1 ply is 3/16” thick.

CedarVent - Cross ventilation battens

You can order the CedarVent with a Weather Fabric on one edge for insect and snow protection called “Plus”. It would be called CedarVent Plus which is designed for the exposed edge of say a wall along the bottom edge or top edge. You can find CedarVent Plus on SmartRoofProducts by following this link: https://smartroofproducts.com/shop/cedarvent-plus/
CedarVent

CedarVent installation instructions

After the roof/wall is prepared with a vapor barrier over the decking or plywood surface, install a strip of CedarVent around the perimeter* of the roof/wall surface (CedarVent Plus is available and comes with a factory applied fabric insect screen attached-generally used but not required at the perimeter of roofs and walls). Next, install CedarVent strips at the lower edge of the roof/wall parallel with the ground and centered at the nail lines, continue pieces butting each piece against the other until you reach the end. Next…

For roofing: Install the next parallel CedarVent up about 5″ or at the next nailing line for your cedar product being installed (CedarVent installs at the nail lines for your particular roof cedar product) and finally install SmartRidge at the roof ridge for ventilation. Your cedar roof is now properly ventilated with exhaust. If you need additional intake ventilation see our SmartVent product. (see note below)

For Wall: Nail CedarVent over existing vertical studs when installing cedar clapboards. For wall shakes nail CedarVent horizontal over plywood/osb panels and install at horizontal nail lines with cedar shakes. Optional to install CedarVent Plus at the bottom course for insect protection. (see note below)

* Note: Perimeter CedarVent on walls should be 3/8″ short of corner posts and soffits to allow air to escape. For roofs, CedarVent can hang over the edges 3/8″ on the perimeter rake and eave areas.

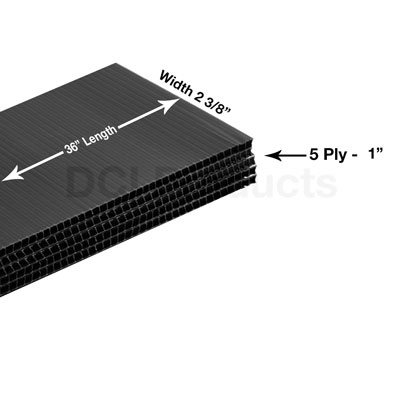

CedarVent and CedarVent Plus are available in 3/16”, 3/8”, ½”, ¾”, 1”, 1.25” & 1.5”thicknesses and custom orders are always available. Use of RevealTape by DCI can speed placement of CedarVent strips.

Click here to Download the installation Instructions

Additional information

Weight N/A
Dimensions N/A
Size

(1 Ply) 1/8" x 2-3/8" x 36" ventilation strips (240 pieces/box) Standard $252.00 ON SALE $228.00, (2 Ply) 3/8" x 2-3/8" x 36" ventilation strips (120 pieces/box) Standard $252.00 ON SALE $228.00, (3 Ply) 1/2" x 2-3/8" x 36" ventilation strips (80 pieces/box) Standard $252.00 ON SALE $228.00, (4 Ply) 3/4" x 2-3/8" x 36" ventilation strips (60 pieces/box) Standard $252.00 ON SALE $228.00

Pieces

120, 80, 60
